Kaerda's SMC: high-strength, fiber-reinforced thermoset sheets. We provide versatile polyester and specialized epoxy formulations for robust performance and design flexibility in numerous applications.

category

Molding Compounds

Fiber Type

Glass Fiber

Production Line

5

Prod. Cap.

60,000 tons

Customization

Yes

Kaerda Sheet Molding Compounds (SMC)

High-Performance Composite Solutions

What is Sheet Molding Compound (SMC)? Sheet Molding Compound (SMC) is a high-strength, fiber-reinforced thermoset composite material, delivered in a ready-to-mold sheet form. At Kaerda, our SMC is primarily composed of high-quality thermosetting resins (such as Unsaturated Polyester – UP, or specialized Epoxy for demanding applications), precisely chopped glass fibers (GF), and carefully selected fillers and additives.

Our formulations are enhanced with various functional additives, including low-profile additives for superior surface finish and dimensional control, pigments for in-mold color, mold release agents for efficient processing, and catalysts to control curing characteristics. This results in a stable, highly moldable material engineered for producing complex, high-performance components.

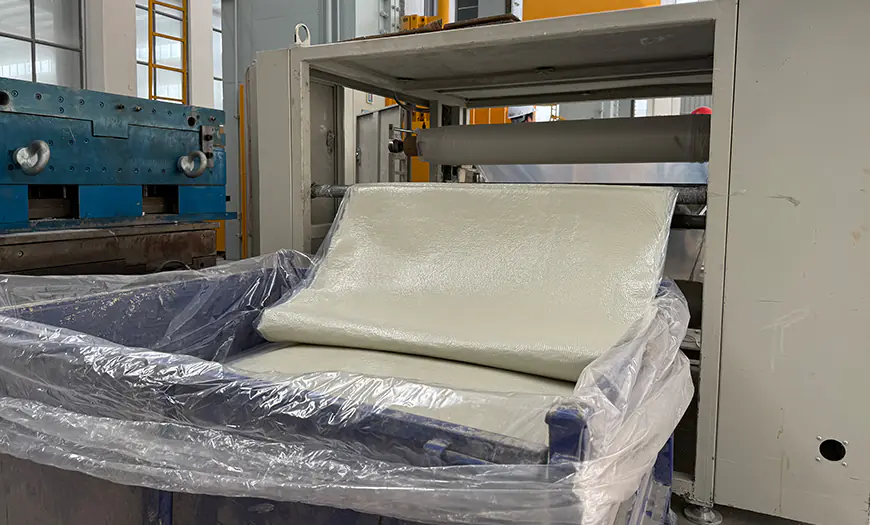

Kaerda develops and manufactures its SMC in-house, ensuring complete control over quality and formulation. Our dedicated SMC production lines process these compounds into continuous sheets, typically sandwiched between polyethylene films for ease of handling and storage.

Key Features & Advantages

  • Lightweight & High Mechanical Strength: Ideal for structural parts and weight reduction.
  • Superior Electrical Insulation: Suitable for demanding electrical applications.
  • Outstanding Fire Resistance: Formulations available to meet stringent FST (fire, smoke, toxicity) standards for safety-critical applications.
  • Corrosion & Weather Resistance: Exceptional durability for outdoor use and exposure to harsh chemical environments.
  • Excellent Thermal Stability: Maintains mechanical properties and integrity at elevated temperatures.
  • Precision Dimensional Control: Very low to “zero shrinkage” characteristics for high-precision parts.
  • Design Versatility & Parts Consolidation: Allows for complex geometries and the integration of multiple functions into single molded parts.
  • Class A Surface Finish & In-Mold Colorability: Achieves smooth, paint-ready surfaces; can also be molded in custom colors.
  • Cost-Effective Solution: Often replaces traditional materials like metals or thermoplastics, offering benefits in weight, processing, and lifecycle costs.

Solutions & Customization

Standard & Specialized Grades:

  • Kaerda offers a comprehensive range of SMC formulations to meet diverse application needs, from general-purpose grades to highly specialized compounds.
  • This includes our advanced Epoxy SMC, specifically developed for high-performance applications such as electric vehicle battery casings, offering superior mechanical strength, fast curing, and excellent corrosion resistance.

Tailored Formulations for Your Application:

  • Our core strength lies in customization. Kaerda’s R&D team works collaboratively with clients to engineer specific SMC compounds tailored to precise performance requirements, including specific levels of mechanical strength, flame retardancy, electrical insulation, UV stability, color matching, surface finish, and processing characteristics.

SMC Technical Specification & Grade Comparison

Explore technical properties across all 22 standard Kaerda Sheet Molding Compound grades. Filter by application industry or flame retardancy specification to find the right material formulation.


Industry:










Flame Retardancy:
Grade Density (g/cm³) Water Abs. (mg) Shrinkage (%) Fiber (%) HDT (°C) Tensile (MPa) Flexural (MPa) Impact (KJ/m²) Flame Rating LOI (%) Applications Details
J3001M 1.80–1.95 ≤20 ≤0.12 15±2 ≥200 ≥35 ≥100 ≥35 — — Telecommunication View →
J3004YV 1.75–1.85 ≤20 ≤0.12 15±2 ≥200 ≥35 ≥100 ≥35 V0 ≥33 Telecommunication View →
J3001 1.75–1.85 ≤20 ≤0.12 24±2 ≥200 ≥50 ≥145 ≥50 — — Electric / Gas Meter Box View →
J3001V1 1.75–1.85 ≤20 ≤0.12 24±2 ≥200 ≥50 ≥145 ≥50 V1 ≥28 Meter Box (FR) View →
J3001V0 1.75–1.85 ≤20 ≤0.13 24±2 ≥200 ≥50 ≥145 ≥50 V0 ≥33 Meter Box (V0) View →
WS-44 1.75–1.85 ≤20 ≤0.12 25±2 ≥200 ≥55 ≥150 ≥50 — — Meter Box View →
6016 1.75–1.85 ≤20 ≤0.10 28±2 ≥200 ≥65 ≥160 ≥65 — — Automotive Body & Parts View →
Q6005L 1.75–1.85 ≤20 ≤0.05 28±2 ≥200 ≥70 ≥160 ≥65 — — Automotive (Low-Shrinkage) View →
65319 1.75–1.85 ≤20 ≤0.05 30±2 ≥200 ≥80 ≥165 ≥80 V1 ≥28 Automotive (FR) View →
SJ3004-1 1.75–1.85 ≤20 ≤0.12 26±2 ≥200 ≥60 ≥155 ≥60 V0 ≥33 Cable Bracket View →
SJ3004-2 1.75–1.85 ≤20 ≤0.12 30±2 ≥200 ≥80 ≥165 ≥80 V0 ≥33 Cable Protection Box View →
6016 V0 1.75–1.85 ≤20 ≤0.12 29±2 ≥200 ≥65 ≥160 ≥65 V0 ≥33 Cable Protection (FR) View →
Q2080 1.75–1.85 ≤20 ≤0.10 21±2 ≥200 ≥40 ≥130 ≥40 — — Sanitary Ware / Bath View →
Q2080-1 1.75–1.85 ≤20 ≤0.05 21±2 ≥200 ≥40 ≥130 ≥40 — — Sanitary Ware (Low-Shrinkage) View →
2040 1.75–1.85 ≤20 ≤0.12 23±2 ≥200 ≥50 ≥135 ≥45 — — Sanitary Ware View →
2040-1 1.75–1.85 ≤20 ≤0.12 23±2 ≥200 ≥50 ≥135 ≥45 V0 ≥33 Sanitary Ware (FR) View →
Q2080-2 1.75–1.85 ≤20 ≤0.12 21±2 ≥200 ≥40 ≥130 ≥40 V0 ≥33 Sanitary Ware (FR) View →
6007P 1.75–1.85 ≤20 ≤0.12 23±2 ≥200 ≥50 ≥135 ≥45 — — Fan Components View →
6007 1.75–1.85 ≤20 ≤0.12 23±2 ≥200 ≥50 ≥135 ≥45 V0 ≥33 Fan Components (FR) View →
6008 1.75–1.85 ≤20 ≤0.12 27±2 ≥200 ≥65 ≥160 ≥65 — — Fan (Heavy-Duty) View →
6009 1.75–1.85 ≤20 ≤0.12 35±2 ≥200 ≥90 ≥180 ≥90 — — Water Tank Panels View →
6008P 1.75–1.85 ≤20 ≤0.10 30±2 ≥200 ≥80 ≥165 ≥80 — — Water Tank Storage View →

downloads

manufacturing guide
annual factory report
factory profile

Frequently Asked Questions about SMC Material

SMC is ideal for large structural components requiring high strength-to-weight ratios, dimensional stability, and corrosion resistance—such as automotive body panels, heavy truck bumpers, electrical meter boxes, and energy storage cabinets.

Kaerda SMC materials can be formulated to meet stringent global flame retardancy standards, including UL94 V-0, EN45545-2 (Rail Transit), and ASTM E84, ensuring maximum safety in electrical and transit environments.

Yes, we offer custom pigment compounding for Class-A surface finishes, UV-resistant formulations, and specialized textures engineered to meet specific OEM design requirements.

Looking for OEM Custom SMC Compression Molding?

Get direct technical support from Kaerda engineers. We assist with mold design consultation, material selection, and rapid sample prototyping.
